Category : Handpieces

Finishing handpiece - Reference : 4050

Stroke rate : 5000 strokes/min.

Length : 113 mm - ø 15 mm - weight : 52 gr - Stroke length : 1 mm

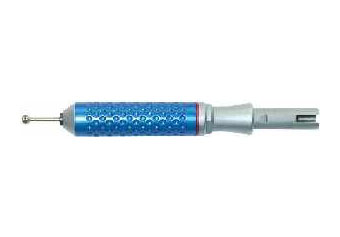

Automatic handpiece - Reference : 4000

Speed : 25 000 rpm
Collet 2,35 mm (available from 0 to 3,2 mm)
Clamping without tool
Length : 137 mm - ø 19 mm - weight : 130 g

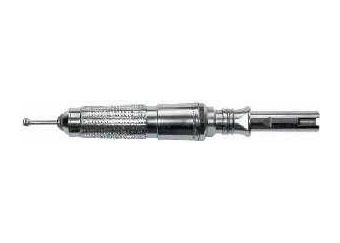

Automatic handpiece - Reference : 4045

Speed : 25 000 rpm
Collet 2,35 mm (available from 0 to 3,2 mm)
Clamping without tool
Length : 145 mm - ø 23 mm - weight : 172 g

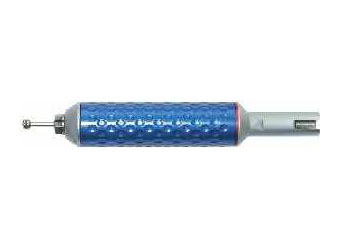

Handpiece for hard work - Reference : 4200

Speed : 25 000 rpm
Collet 2,35 mm (available from 0 to 6 mm)
Clamping with a spanner and a locking rod
Length : 125 mm - ø 22 mm - weight : 135 g

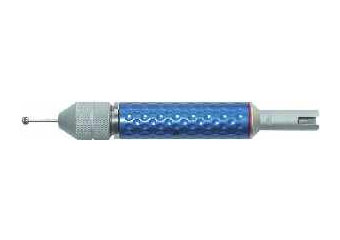

Handpiece with mandrel - Reference : 4250

Speed : 25 000 rpm
Drill chuck clamping from 0,5 to 4 mm
Clamping with a locking rod
Length : 150 mm - ø 22 mm - weight : 200 g

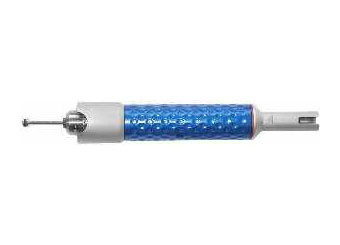

Handpiece with mandrel locking by a key - Reference : 4275

Speed : 25 000 rpm
Drill chuck clamping from 0 to 4 mm
Clamping with a key and a locking rod
Length : 150 mm - ø 22 mm - weight : 205 g

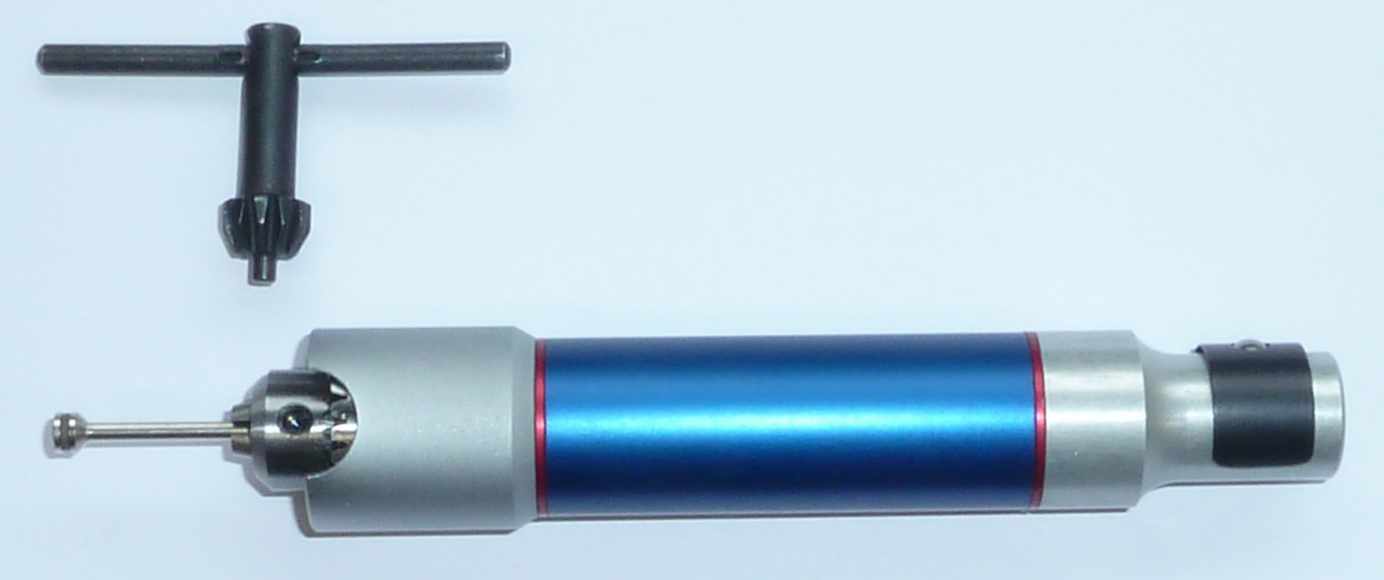

All around handpiece - Reference : 4300

US connection

Made with ball bearing

Adjustable chuck from ø 0,5 to 4 mm.

Speed maxi : 20 000 rpm

Length : 135 mm - ø 25 mm - Weight : 170 gr

All around handpiece - Reference : SL.4300

Slip connection

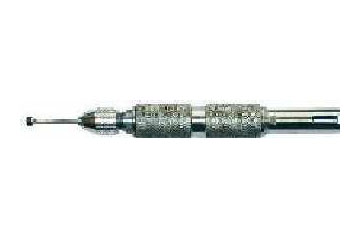

Handpiece for light work - Reference : 2000

Speed : 15 000 rpm
Collets supplied : 0 - 2,35 - 3 - 4 mm
Clamping with a key
Length : 117 mm - ø 16 mm
Weight : 100 g

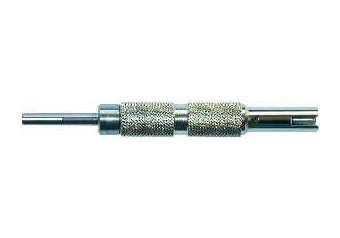

Handpiece for emery paper - Reference : P6.2000 - P8.2000

Speed : 15 000 rpm
P6 : length : 138 mm - ø 16 mm - weight : 108 g
P8 : length : 142 mm - ø 16 mm - weight : 115 g

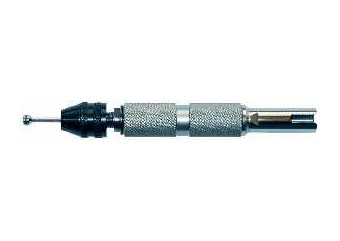

Handpiece with mandrel - Reference : 2050

Speed : 15 000 rpm
Drill chuck clamping from 0 to 3,5 mm
Clamping with a key
Length : 121 mm - ø 16 mm - weight : 115 g
